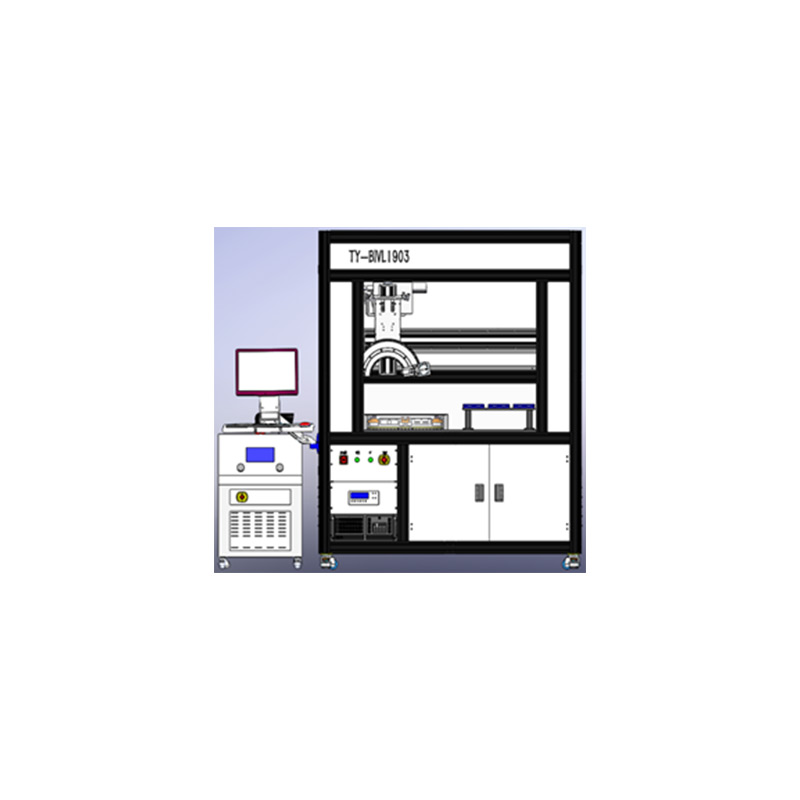

Five axis optical test system (with aging system)
Five axis optical test system (with aging system)
Five axis optical test system (with aging system)
Five axis optical test system (with aging system)
Five axis optical test system (with aging system)

Five axis optical test system (with aging system)

Retail price
0.0

Characteristic:
① OLED small size optical aging test system, 1 ~ 8inch;
② Automatic five axis motion system;
③ Automatic alignment;
④ Multifunctional fixture;
⑤ Multi instrument carrying;
⑥ Convenient for sample installation
⑦ With current and voltage monitoring;
⑧ 9-position aging & 1-position high and low temperature test;





Projects Specifications
Dimensions Length * width * height: 1.90m * 1.70m * 2.20M
Test sample size 1inch~8inch
Spectrometer CS-2000A/SR-UL2/PR788/SR3
Response time TY-200A/ELDIM OptiscopeSA
Motor system High precision servo motor, high precision ball screw, rotation angle + / - 75 & deg
Function High and low temperature optical characteristic test, spectrum, peak value, FWHM, brightness, chroma, contrast, uniformity, voltage, current, current density, efficiency, color temperature, color rendering index, crosstalk, gamma & nbsp; Curve, chroma angle, brightness angle, contrast angle, IVL, power consumption, response time, etc
Signals It supports special instrument made models and market general brand signal machines, supports customized signal, and signal format: TTL / LVDS / Mipi / HDMI / EDP / 2K & amp; 4K& 8K, etc
Power supply Support high precision multi-channel DC power output, as well as customized power demand
Software The software developed by Teyi is all Chinese version, C # programming modularization, easy to operate, UI interface can be customized according to customer needs, the software comes with various standard test methods, and can be tested through direct call mode.
