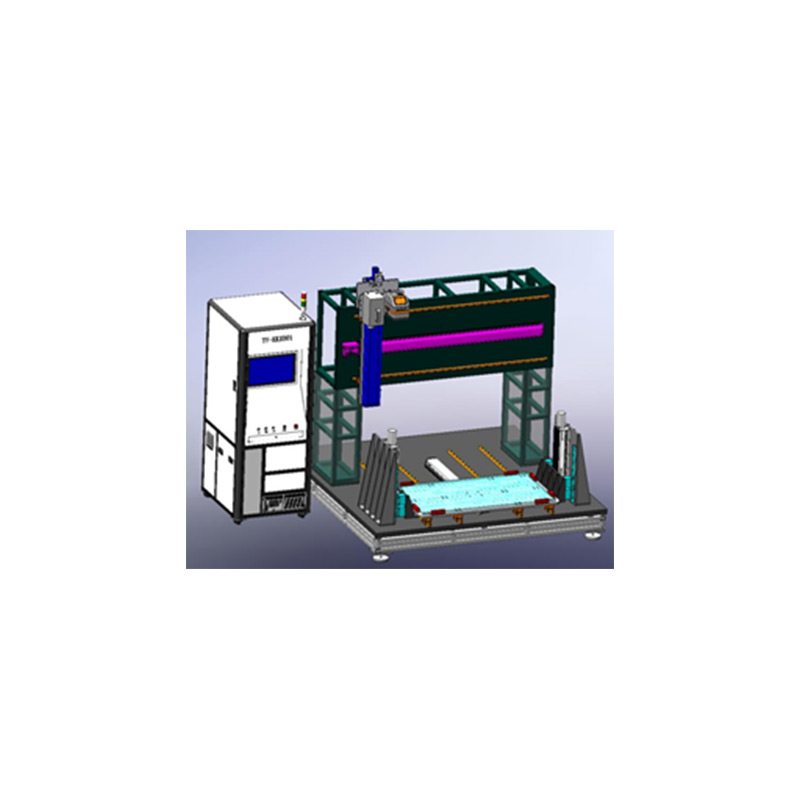

Triaxial optical testing system(Mini Led)
Triaxial optical testing system(Mini Led)
Triaxial optical testing system(Mini Led)
Triaxial optical testing system(Mini Led)

Triaxial optical testing system(Mini Led)

Retail price
0.0

Characteristic:
① Mini LED optical test system, below 65inch
② Automatic three axis motion control
③ Automatic alignment
④ Multi function fixture,
⑤ Multi instrument carrying, supporting surface measurement and point measurement



Projects Specifications
Dimensions Length * width * height: 2.70m * 2.55m * 2.70m
Test sample size 8inch~85inch(mini led Backlight)
Spectrometer CS-2000A/SR-UL2/PR788/SR3
Camera I16,UA-10W,IS-140D,SR-5000
Motor system High precision servo motor, high precision ball screw
Function Chromaticity, brightness, uniformity, spectrum test support: surface uniformity test, point line plane, mura test
Signals It supports special instrument made models and market general brand signal machines, supports customized signal, and signal format: TTL / LVDS / Mipi / HDMI / EDP / 2K & amp; 4K& 8K, etc
Power supply Support high precision multi-channel DC power output, as well as customized power demand
Software The software developed by Teyi is all Chinese version, C # programming modularization, easy to operate, UI interface can be customized according to customer needs, the software comes with various standard test methods, and can be tested through direct call mode.
