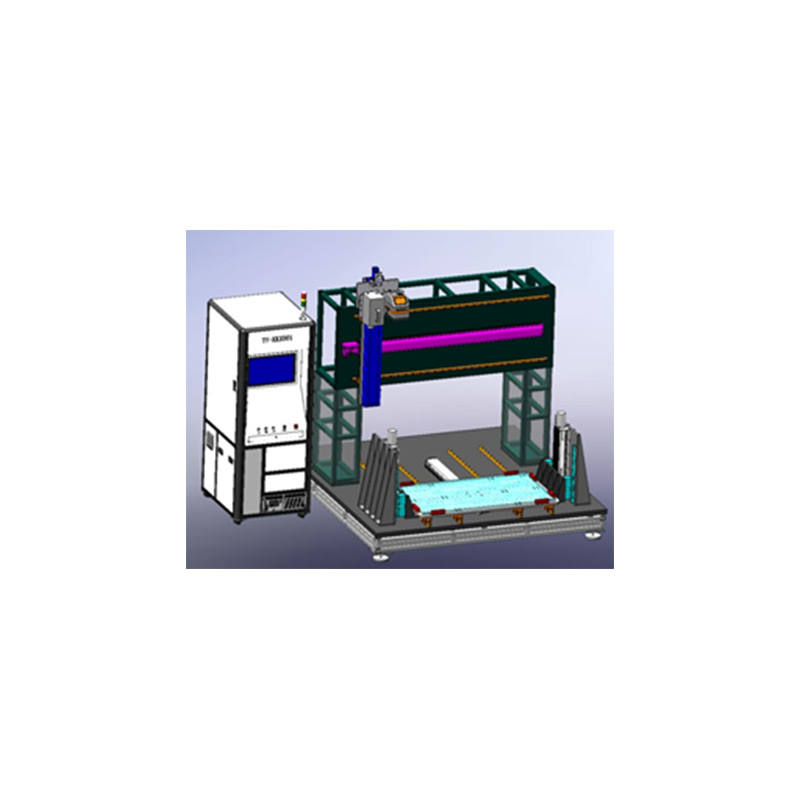

Triaxial optical testing system（Mini Led）
Category :
Triaxial optical test equipment
Retail price
0.0
元
Characteristic:
① Mini LED optical test system, below 65inch
② Automatic three axis motion control
③ Automatic alignment
④ Multi function fixture,
⑤ Multi instrument carrying, supporting surface measurement and point measurement
| Projects | Specifications |
| Dimensions | Length * width * height: 2.70m * 2.55m * 2.70m |
| Test sample size | 8inch~85inch（mini led Backlight) |
| Spectrometer | CS-2000A/SR-UL2/PR788/SR3 |
| Camera | I16，UA-10W,IS-140D，SR-5000 |
| Motor system | High precision servo motor, high precision ball screw |
| Function | Chromaticity, brightness, uniformity, spectrum test support: surface uniformity test, point line plane, mura test |
| Signals | It supports special instrument made models and market general brand signal machines, supports customized signal, and signal format: TTL / LVDS / Mipi / HDMI / EDP / 2K & amp; 4K& 8K, etc |
| Power supply | Support high precision multi-channel DC power output, as well as customized power demand |
| Software | The software developed by Teyi is all Chinese version, C # programming modularization, easy to operate, UI interface can be customized according to customer needs, the software comes with various standard test methods, and can be tested through direct call mode. |
