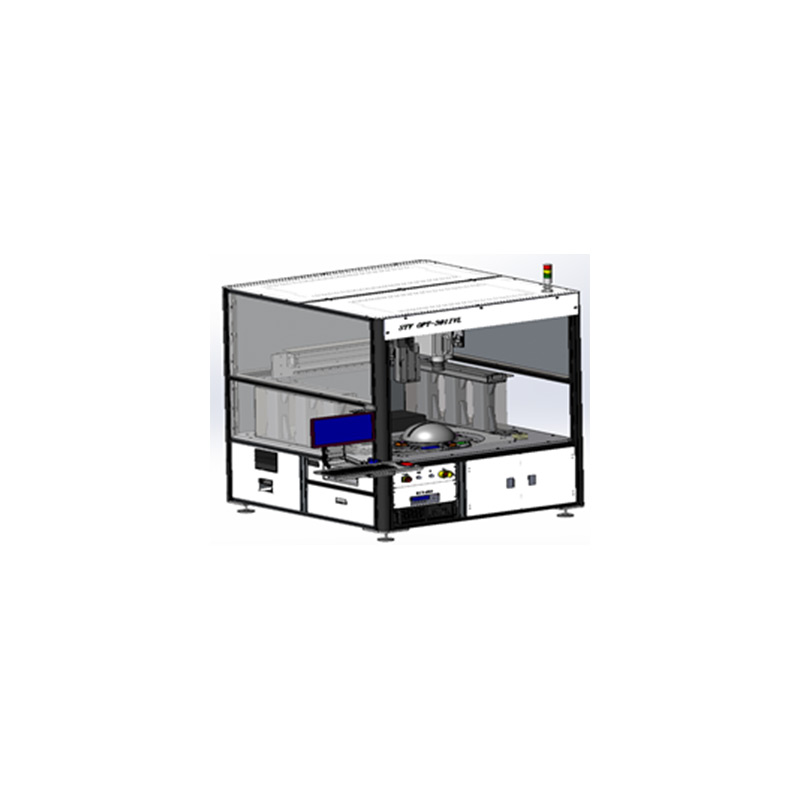

Five axis optical test system (integrating sphere)
Five axis optical test system (integrating sphere)
Five axis optical test system (integrating sphere)
Five axis optical test system (integrating sphere)
Five axis optical test system (integrating sphere)

Five axis optical test system (integrating sphere)

Retail price
0.0
元

Characteristic:
① OLED small and medium size optical test system, 1 ~ 15.6 inch;
② Automatic five axis motion control;
③ Automatic alignment;
④ Multifunctional fixture;
⑤ Multi instrument carrying;
⑥ It can support reflection & diffuse reflection test;
⑦ With current and voltage monitoring;
⑧ With high and low temperature test module;



Projects Specifications
Dimensions Length * width * height: 1.6m * 1.6m * 2.3m
Test sample size 1inch~15.6inch
Spectrometer CS-2000A/SR-UL2/PR788/SR3
Response time TY-200A/ELDIM OptiscopeSA
Integrating sphere 8”& amp; 12” Semi integrating sphere
Motor system High precision servo motor, high precision ball screw, rotation angle + / - 90 & deg
Function Spectrum, peak, FWHM, brightness, chroma, contrast, uniformity, voltage, current, current density, efficiency, color temperature, color rendering index, crosstalk, gamma & nbsp; Curve, chroma angle, brightness angle, contrast angle, IVL, power consumption, response time, reflection and diffuse reflection, etc
Signals It supports special instrument made models and market general brand signal machines, supports customized signal, and signal format: TTL / LVDS / Mipi / HDMI / EDP / 2K & amp; 4K& 8K, etc
Power supply Support high precision multi-channel DC power output, as well as customized power demand
Software The software developed by Teyi is all Chinese version, C # programming modularization, easy to operate, UI interface can be customized according to customer needs, the software comes with various standard test methods, and can be tested through direct call mode.
